Experiments

Author
Affiliation

Claudius Gräbner-Radkowitsch

EUF and JKU

Published

05 12 2025

Introduction

In this lab we will learn how to analyze data obtained from experiments. We will complement the lecture by also introducing some additional, practically relevant concepts.

More precisely, we focus on the following aspects:

  • Import and explore datasets as typically produced by experiments
  • Conduct t-tests for simple experimental comparisons
  • Perform ANOVA for multi-group comparisons
  • Understand how ANOVA is a special case of linear regression
  • Analyze factorial experimental designs
  • Calculate and interpret effect sizes
  • Create visualizations of experimental results

Throughout the tutorial we will use the following packages:

Show R code
library(dplyr)        # Data manipulation
library(ggplot2)      # Data visualization
library(ggdist)       # More visualization options
library(readr)        # Simple data import
library(broom)        # Extract model data
library(effectsize)   # Effect size calculations
library(car)          # Advanced ANOVA functions
library(emmeans)      # Post-hoc comparisons
library(knitr)        # For nice tables
library(kableExtra)   # For enhanced table formatting
library(patchwork)    # For aligning multiple plots
library(pwr)          # For power analysis and sample size planning

We will use the following data sets, which are available for download from the lab webpage.

Show R code
leadership_study_between <- read_csv(
  file = "leadership_study_between.csv", show_col_types = FALSE)
leadership_study_within <- read_csv(
  file = "leadership_study_within.csv", show_col_types = FALSE)
communication_study <- read_csv(
  file = "communication_study.csv", show_col_types = FALSE)
factorial_study <- read_csv(
  file = "factorial_study.csv", show_col_types = FALSE)

For each main analysis tool - t-test, one-way ANOVA, two-way ANOVA - there are a number of steps to be taken:

  1. Get an exploratory overview over the data
  2. Check the assumptions of the analysis tool
  3. Implement the analysis tool
  4. Calculate standardized effect sizes
  5. Conduct post-hoc tests, if necessary

Since the commands are basically the same for all tools, we discuss these steps more extensively in the beginning when dealing with t-tests, and only provide example code later on.

The data used

As usual, it is a good idea to start with looking at the data sets, such that you know what the data looks like:1

The between leadership study

Results of an experiment where the treatment group has received leadership training, and the control group did not. Both groups participated in an exercise where their performance was assessed.

Show R code
head(leadership_study_between) |>
  kable()
participant_id group team_performance
1 control 69.39524
2 control 72.69823
3 control 90.58708
4 control 75.70508
5 control 76.29288
6 control 92.15065
Show R code
summary(leadership_study_between) |>
  kable()
participant_id group team_performance
Min. : 1.00 Length:60 Min. : 55.33
1st Qu.:15.75 Class :character 1st Qu.: 70.71
Median :30.50 Mode :character Median : 79.33
Mean :30.50 NA Mean : 79.16
3rd Qu.:45.25 NA 3rd Qu.: 87.32
Max. :60.00 NA Max. :103.69

The within leadership study

The effectiveness of a leadership training was assessed by testing the performance of a group before and after the training.

Show R code
head(leadership_study_within) |>
  kable()
participant_id pre_performance post_performance
31 77.94803 86.26464
32 74.38718 79.04929
33 71.90985 90.95126
34 64.97675 90.78133
35 80.88522 90.21581
36 65.19792 88.88640
Show R code
summary(leadership_study_within) |>
  kable()
participant_id pre_performance post_performance
Min. :31.00 Min. :56.66 Min. : 66.51
1st Qu.:38.25 1st Qu.:64.46 1st Qu.: 78.97
Median :45.50 Median :68.07 Median : 82.48
Mean :45.50 Mean :69.25 Mean : 83.78
3rd Qu.:52.75 3rd Qu.:73.72 3rd Qu.: 89.57
Max. :60.00 Max. :87.50 Max. :103.69

The communication study

An experiment where employees communicated only by one of three possible ways (face_to_face, via video calls or via email) and then their work satisfaction was assessed.

Show R code
head(communication_study) |>
  kable()
participant_id communication_method satisfaction_score task_completion_time
1 face_to_face 5.587774 22.63382
2 face_to_face 7.946131 21.65397
3 face_to_face 8.161050 31.79263
4 face_to_face 5.533329 32.06459
5 face_to_face 6.342772 21.33613
6 face_to_face 6.811127 24.59724
Show R code
summary(communication_study) |>
  kable()
participant_id communication_method satisfaction_score task_completion_time
Min. : 1.00 Length:90 Min. :2.743 Min. :15.57
1st Qu.:23.25 Class :character 1st Qu.:5.840 1st Qu.:23.38
Median :45.50 Mode :character Median :6.784 Median :27.63
Mean :45.50 NA Mean :6.752 Mean :28.43
3rd Qu.:67.75 NA 3rd Qu.:7.789 3rd Qu.:32.65
Max. :90.00 NA Max. :9.936 Max. :47.41

The factorial study

Novice and expert employees received either critical or positive feedback. Afterwards, their performance improvement was assessed.

Show R code
head(factorial_study) |>
  kable()
participant_id feedback_type experience_level performance_improvement
1 positive novice 9.572290
2 positive expert 1.217696
3 positive novice 7.940961
4 positive expert 8.549420
5 positive novice 6.915946
6 positive expert 6.546548
Show R code
summary(factorial_study) |>
  kable()
participant_id feedback_type experience_level performance_improvement
Min. : 1.00 Length:120 Length:120 Min. :-1.882
1st Qu.: 30.75 Class :character Class :character 1st Qu.: 4.206
Median : 60.50 Mode :character Mode :character Median : 6.937
Mean : 60.50 NA NA Mean : 6.367
3rd Qu.: 90.25 NA NA 3rd Qu.: 8.757
Max. :120.00 NA NA Max. :12.748

💡 Short recap: How have these data sets been created? How do they connect to the experimental designs discussed in the lecture?

  • Dataset 1: Classic randomized controlled trial (RCT) with treatment and control groups
  • Dataset 2: One-way experimental design with three conditions (between-subjects)
  • Dataset 3: 2×2 factorial design allowing us to test main effects and interactions
  • Connection to lecture: These represent the three main experimental designs we discussed - simple, multi-group, and factorial

Part 2: Simple Experiments - t-tests

Assume we are asking the following research question:

Does leadership training improve team performance?

One way to tackle this question is to compare a treatment group, which has received a leadership training, to a control group, which has not received such training. If the groups are otherwise similar, then this setting should help us to identify the causal effect of the leadership training.2

Descriptive statistics

For this task, we will use the first data set. Let us first compute the standard statistics:

Show R code
descriptive_stats <- leadership_study_between %>%
  group_by(group) %>%
  summarise(
    n = n(),
    mean = mean(team_performance),
    sd = sd(team_performance),
    median = median(team_performance),
    .groups = 'drop'
  )

kable(descriptive_stats, digits = 2)
group n mean sd median
control 30 74.53 9.81 74.26
training 30 83.78 8.35 82.48

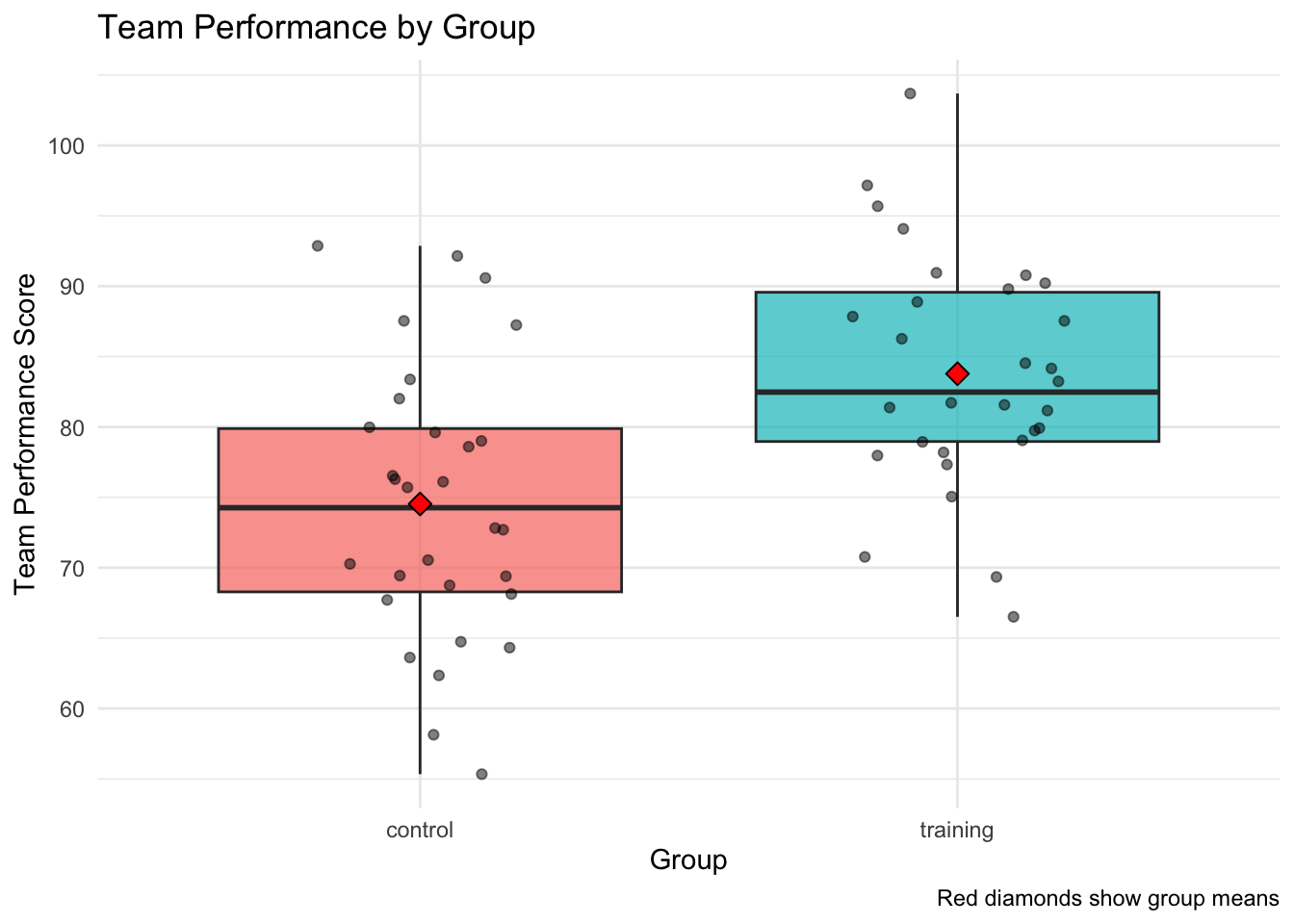

As usual, it is also strongly recommended to complement the quantitative info with a visualization. Data such as those is often presented using boxplots:

Show R code
ggplot(leadership_study_between, aes(x = group, y = team_performance, fill = group)) +
  geom_boxplot(alpha = 0.7) +
  geom_jitter(width = 0.2, alpha = 0.5) +
  stat_summary(fun = mean, geom = "point", shape = 23, size = 3, fill = "red") +
  labs(title = "Team Performance by Group",
       x = "Group",
       y = "Team Performance Score",
       caption = "Red diamonds show group means") +
  theme_minimal() +
  theme(legend.position = "none")

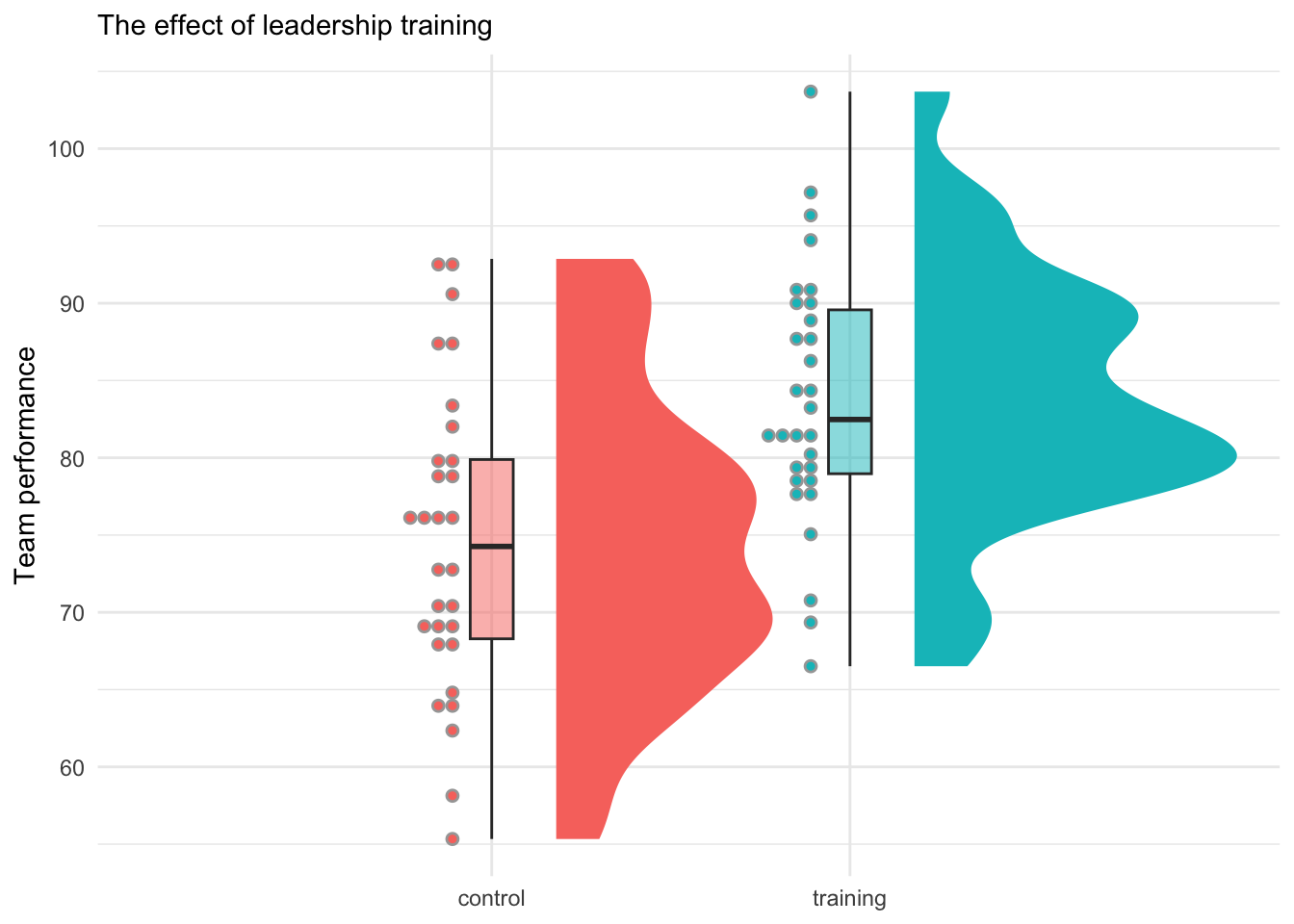

But boxplots might shallow important distributional info, so you should use them carefully or complement them with other tools. Below is an alternative that provides more information on the distribution of the data. For more on this issue see Holtz (2025).

Show R code
ggplot(
  data = leadership_study_between,
  mapping = aes(x = group, y = team_performance, fill = group)
  ) +
    stat_halfeye(
    adjust = 0.5,
    justification = -0.2,
    .width = 0,
    point_colour = NA
  ) +
  geom_boxplot(
    width = 0.12,
    outlier.color = NA,
    alpha = 0.5
  ) +
  stat_dots(
    side = "left",
    justification = 1.1,
    binwidth = 0.85
  ) +
  labs(
    title = "The effect of leadership training",
    y = "Team performance") +
  theme_minimal() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 11),
    axis.title.x = element_blank()
  )

Assumption Checking

In the following we want to compare the means across independent groups. To this end, we may use a t-test.

But such statistical tests make specific assumptions about the data. If these assumptions were violated, the results would be unreliable or incorrect. Therefore, it is important to check the adequacy of these assumptions for the data at hand first.

And no worries if the assumptions for one test are violated - usually there are alternatives available.

In the present case, we want to use a simple t-test. This test makes two assumptions:

  1. The two groups each are normally distributed.
  2. The variances of both groups are the same.

To test the first assumption, we can use the Shapiro-Wilk Test for Normality. Here we test the following hypothesis:

  • \(H_0\) : The data is normally distributed
  • \(H_1\) : The data is not normally distributed

Thus, we we get \(p > 0.05\), we cannot reject \(H_0\). But for smaller \(p\)-values, we should reject \(H_0\) and need to look for alternatives to the standard t-test.

Show R code
leadership_study_between |>
  filter(group=="control") |>
  pull(team_performance) |>
  shapiro.test()

    Shapiro-Wilk normality test

data:  pull(filter(leadership_study_between, group == "control"), team_performance)
W = 0.97894, p-value = 0.7966
Show R code
leadership_study_between |>
  filter(group=="training") |>
  pull(team_performance) |>
  shapiro.test()

    Shapiro-Wilk normality test

data:  pull(filter(leadership_study_between, group == "training"), team_performance)
W = 0.98662, p-value = 0.9614

Good! We cannot reject the hypothesis of normally distributed data as the \(p\)-value is much larger than \(0.05\).

The next step is to test, whether both groups have the same variance. Levene’s test can be used to do exactly this. It tests:

  • \(H_0\): The variances are equal across groups
  • \(H_1\): The variances are not equal across groups

If \(p > 0.05\), we do not reject \(H_0\) and we can use a simple t-test. If we have to reject \(H_0\), however, it would be better to use the more robust Welch test.

Show R code
car::leveneTest(team_performance ~ group, data = leadership_study_between)
Levene's Test for Homogeneity of Variance (center = median)
      Df F value Pr(>F)
group  1  1.0763 0.3038
      58

Again, the \(p\)-value is much larger than \(0.05\), so we can safely continue with the standard t-test.

Independent t-test

The standard independent t-test is the common tool to compare means between two groups when we have continuous data and want to test if there’s a statistically significant difference.

Show R code
t_test_result <- t.test(
  team_performance ~ group,
  data = leadership_study_between,
  var.equal = TRUE # Use FALSE if variances unequal
  )
t_test_result

    Two Sample t-test

data:  team_performance by group
t = -3.9344, df = 58, p-value = 0.0002256
alternative hypothesis: true difference in means between group control and group training is not equal to 0
95 percent confidence interval:
 -13.962870  -4.545972
sample estimates:
 mean in group control mean in group training
              74.52896               83.78338

The very small \(p\)-value indicates that the difference of -9.25 is highly significant!

Effect Size Calculation

The previous result tells us that the difference in means between the groups appeaers to be about -9.25. But is this a lot? Effect sizes tell us about the practical significance of our findings by relating the absolute numbers to the scale of the measurement.

Unlike \(p\)-values, effect sizes are not influenced by sample size and help us understand if our statistically significant result is also practically meaningful.

The standard measure is Cohen’s d: This standardized effect size tells us how many standard deviations apart the two group means are. Its interpretation follows a convention:

  • Small effect: \(d\approx 0.2\) (groups overlap about 85%)
  • Medium effect: \(d\approx 0.5\) (groups overlap about 67%)
  • Large effect: \(d\approx 0.8\) (groups overlap about 53%)

The implementation in R is trivial:

Show R code
cohens_d <- effectsize::cohens_d(team_performance ~ group, data = leadership_study_between)
print(cohens_d)
Cohen's d |         95% CI
--------------------------
-1.02     | [-1.55, -0.47]

- Estimated using pooled SD.

The key value here is Cohen’s d of -1.02! This suggests a large and practically meaningful effect!

Paired t-test Example

Next, we might want to look at our research question from a slightly different angle. Rather than the between-subject design from above, we now take a within-subject view: to this end, we want to check whether the training had an effect on those people who were in the training (treatment) group by comparing their performance before and after the training.

To this end, we use the data set leadership_study_within, and then use the function t.test() with the argument paired = TRUE. This makes sure we are using the version of the test for the within-subjects context:

Show R code
paired_result <- t.test(
  leadership_study_within$post_performance,
  leadership_study_within$pre_performance,
  paired = TRUE)
print(paired_result)

    Paired t-test

data:  leadership_study_within$post_performance and leadership_study_within$pre_performance
t = 7.4774, df = 29, p-value = 3.059e-08
alternative hypothesis: true mean difference is not equal to 0
95 percent confidence interval:
 10.55898 18.51001
sample estimates:
mean difference
       14.53449

As above, we should also compute standardized effect sizes. There are two options: using the t-test object directly, or using the raw data. If you do the latter, make sure to set paired=TRUE to use the correct version for the within context:

Show R code
cohens_d_within_a <- effectsize::cohens_d(paired_result)
print(cohens_d_within_a)
Cohen's d |       95% CI
------------------------
1.37      | [0.86, 1.86]
Show R code
cohens_d_within_b <- effectsize::cohens_d(
  leadership_study_within$post_performance,
  leadership_study_within$pre_performance,
  paired = TRUE)
print(cohens_d_within_b)
Cohen's d |       95% CI
------------------------
1.37      | [0.86, 1.86]

🎯 Exercise (5 minutes): Interpret the results of the test above. What can we conclude about the effectiveness of leadership training?

  • Statistical significance: If \(p < 0.05\), training significantly improved performance; since \(p\approx 0\), the training has a highly significant effect
  • Effect size interpretation: Cohen’s d is large, so we have a large effect. This suggests the effect of the training is also practically meaningful.
  • Confidence interval: If the CI doesn’t include 0, we’re confident there’s a real difference; even if we are very conservative, we would still expect a 10 point improvement of the training.
  • Business implication: Training appears effective and worth the investment

Part 3: Multi-Group Experiments - ANOVA (25 minutes)

Let us now turn to the following research question:

Which communication method (face-to-face, video call, email) leads to highest satisfaction?

Note that this time we not only compare one group to another as in the previous section, but we need to compare three groups with each other as we have three different communication methods. Therefore, we cannot use simple t-tests, but need to use an ANOVA.

Descriptive statistics

But first, let us again look at the data:

Show R code
communication_study %>%
  group_by(communication_method) %>%
  summarise(
    n = n(),
    mean = mean(satisfaction_score),
    sd = sd(satisfaction_score),
    min = min(satisfaction_score),
    max = max(satisfaction_score),
    .groups = 'drop'
  ) |>
  kable(digits = 2)
communication_method n mean sd min max
email 30 5.78 1.46 2.74 8.73
face_to_face 30 7.48 1.39 5.14 9.94
video_call 30 7.00 1.10 4.20 9.50

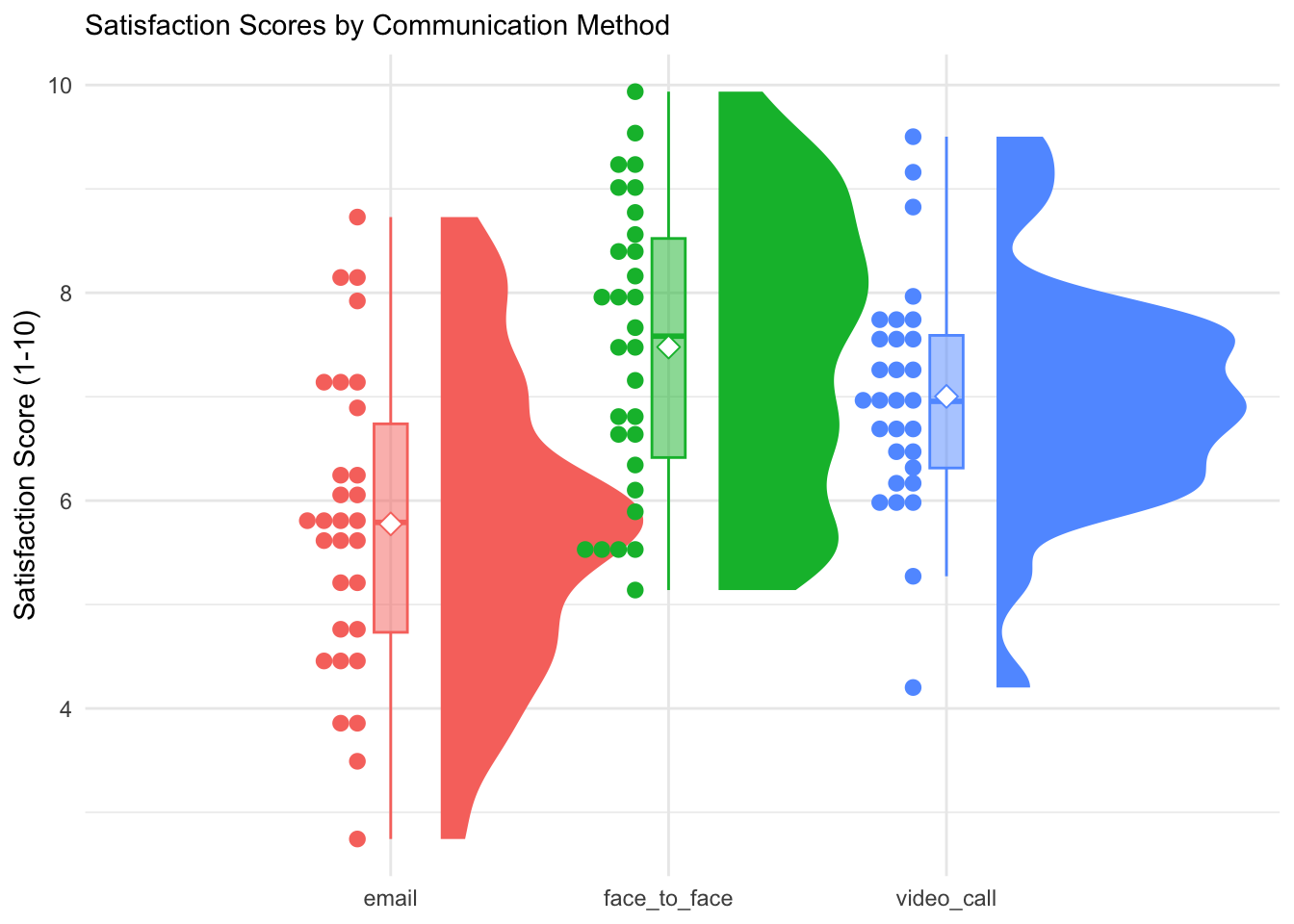

And complement this by a visualization:

Show R code
ggplot(
  data = communication_study,
  mapping = aes(
    x = communication_method,
    y = satisfaction_score,
    fill = communication_method,
    color = communication_method)
  ) +
    stat_halfeye(
    adjust = 0.5,
    justification = -0.2,
    .width = 0,
    point_colour = NA
  ) +
  geom_boxplot(
    width = 0.12,
    outlier.color = NA,
    alpha = 0.5
  ) +
  stat_dots(
    side = "left",
    justification = 1.1,
    binwidth = 0.15
  ) +
  stat_summary(fun = mean, geom = "point", shape = 23, size = 3, fill = "white") +
  labs(
    title = "Satisfaction Scores by Communication Method",
    x = "Communication Method",
    y = "Satisfaction Score (1-10)") +
  theme_minimal() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 11),
    axis.title.x = element_blank()
  )

ANOVA Assumptions

ANOVA is more robust than t-tests but still requires certain conditions to be met for valid results. In fact, we are testing the same assumptions as in the t-test case:

  • Normality of Residuals: For ANOVA, we check if the residuals (not the raw data) are normally distributed.

  • Homogeneity of Variances: ANOVA assumes that the variance of the dependent variable is equal across all groups.

Let us start with testing the normality of the residuals. We again use the Shapiro test, which tests the following hypothesis:

  • \(H_0\): Residuals are normally distributed
  • \(H_1\): Residuals are not normally distributed

Thus, if \(p > 0.05\), the Null cannot be rejected and we can assume the residuals to follow a normal distribution. If \(p \leq 0.05\), however, the hypothesis of normally distributed residuals must be rejected and we need to consider transforming the data or using a non-parametric test.

Show R code
aov_model <- aov(satisfaction_score ~ communication_method, data = communication_study)

shapiro.test(residuals(aov_model))

    Shapiro-Wilk normality test

data:  residuals(aov_model)
W = 0.99149, p-value = 0.8342

Since \(p>0.05\) we are on the save side!

We then check the equality of variances and again use Levene’s test with the following hypotheses:

  • \(H_0\): Variances are equal across all groups
  • \(H_1\): Variances are not equal across groups

Thus, if \(p > 0.05\), the Null cannot be rejected and we can assume the variances to be equal. If \(p \leq 0.05\), however, the hypothesis of equal variances must be rejected and we need to consider transforming the data or using Welch’s ANOVA.

Show R code
car::leveneTest(satisfaction_score ~ communication_method, data = communication_study)
Levene's Test for Homogeneity of Variance (center = median)
      Df F value Pr(>F)
group  2  1.8801 0.1587
      87

Again, the Null cannot be rejected and we can continue with the ANOVA as planned.

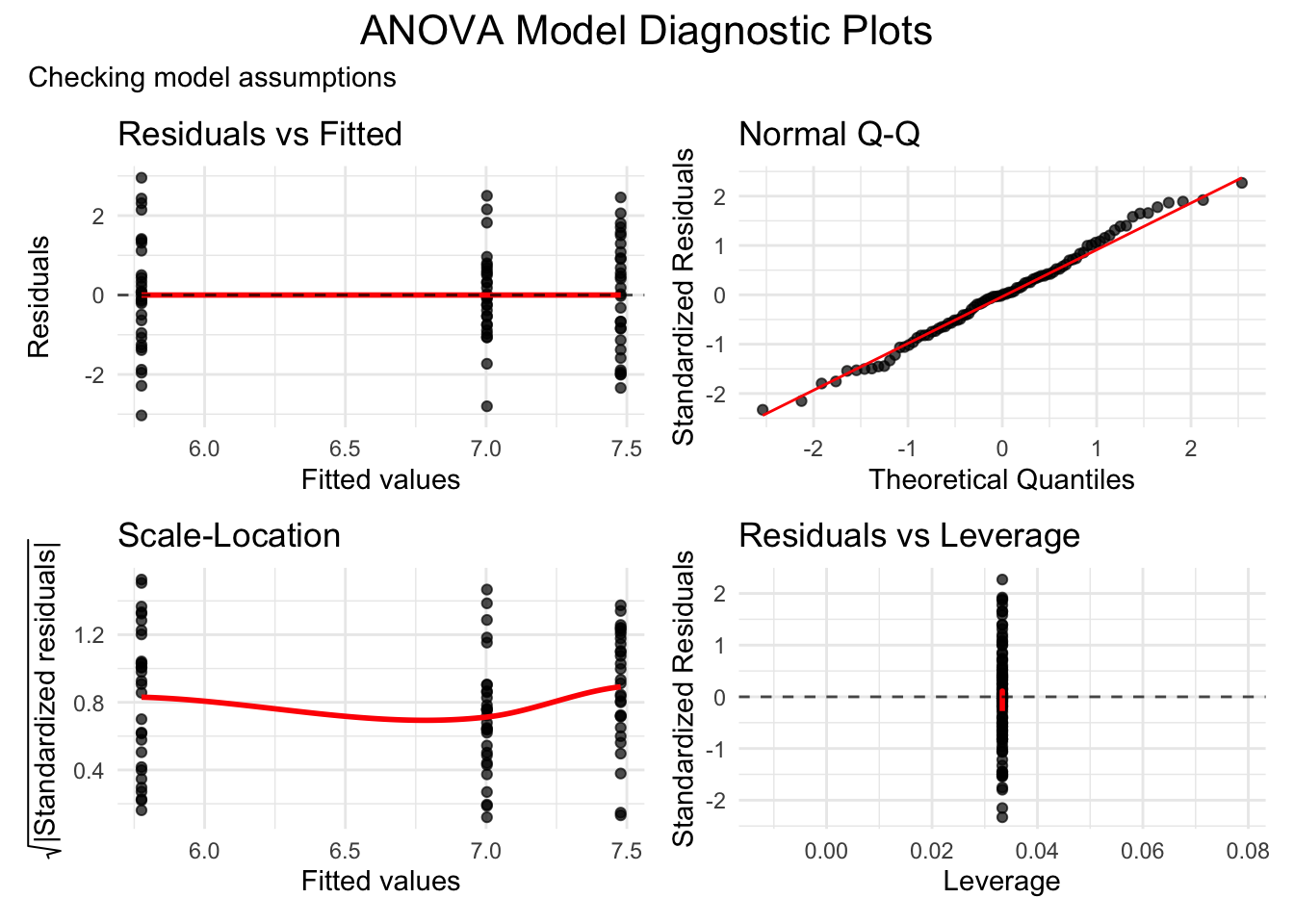

Before we enter the actual analysis we can also create the common diagnostics plots:

Show R code
model_data <- augment(aov_model) %>%
  mutate(
    sqrt_abs_resid = sqrt(abs(.std.resid)),
    obs_number = row_number()
  )

residuals_vs_fitted <- model_data %>%
  ggplot(aes(x = .fitted, y = .resid)) +
  geom_point(alpha = 0.7) +
  geom_smooth(method = "loess", se = FALSE, color = "red") +
  geom_hline(yintercept = 0, linetype = "dashed", alpha = 0.7) +
  labs(title = "Residuals vs Fitted", x = "Fitted values", y = "Residuals") +
  theme_minimal()

qq_plot <- model_data %>%
  ggplot(aes(sample = .std.resid)) +
  stat_qq(alpha = 0.7) +
  stat_qq_line(color = "red") +
  labs(title = "Normal Q-Q", x = "Theoretical Quantiles", y = "Standardized Residuals") +
  theme_minimal()

scale_location <- model_data %>%
  ggplot(aes(x = .fitted, y = sqrt_abs_resid)) +
  geom_point(alpha = 0.7) +
  geom_smooth(method = "loess", se = FALSE, color = "red") +
  labs(title = "Scale-Location", x = "Fitted values",
       y = expression(sqrt("|Standardized residuals|"))) +
  theme_minimal()

residuals_vs_leverage <- model_data %>%
  ggplot(aes(x = .hat, y = .std.resid)) +
  geom_point(alpha = 0.7) +
  geom_smooth(method = "loess", se = FALSE, color = "red") +
  geom_hline(yintercept = 0, linetype = "dashed", alpha = 0.7) +
  labs(title = "Residuals vs Leverage", x = "Leverage", y = "Standardized Residuals") +
  theme_minimal()

combined_patchwork <- (residuals_vs_fitted | qq_plot) /
                            (scale_location | residuals_vs_leverage) +
  plot_annotation(
    title = "ANOVA Model Diagnostic Plots",
    subtitle = "Checking model assumptions",
    theme = theme(plot.title = element_text(size = 16, hjust = 0.5))
  )
combined_patchwork

  • Residuals vs Fitted: Should show random scatter (no patterns)
  • Q-Q plot: Points should follow the diagonal line (normality)
  • Scale-Location: Should show random scatter (equal variances)
  • Residuals vs Leverage: Identifies influential outliers

One-Way ANOVA

Since we compare three groups we do not use t-tests but an ANOVA.

As you know, ANOVA is actually a special case of linear regression. Therefore, we can get the ANOVA results in two equivalent ways.

The first option is to use the classical aov() function:

Show R code
anova_result <- aov(satisfaction_score ~ communication_method, data = communication_study)
summary(anova_result)
                     Df Sum Sq Mean Sq F value   Pr(>F)
communication_method  2  46.29  23.146    13.2 9.81e-06 ***
Residuals            87 152.50   1.753
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

The second option is to use lm() as we know it from linear regression:

Show R code
lm_model <- lm(satisfaction_score ~ communication_method, data = communication_study)
anova(lm_model)
Analysis of Variance Table

Response: satisfaction_score
                     Df  Sum Sq Mean Sq F value    Pr(>F)
communication_method  2  46.292 23.1460  13.205 9.813e-06 ***
Residuals            87 152.497  1.7528
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
  • The overall \(p\)-value is extremely small, so the Null hypothesis of no difference between the groups should definitely be rejected
  • In other words: Communication method significantly affects satisfaction scores
  • This means that at least one communication method produces significantly different satisfaction scores than the others
  • But the result does not tell us which specific methods differ from each other (need post-hoc tests, see below)
  • The result also does not contain information about the direction of differences (which method is best/worst) or the effect size

Detour: categorical variables in Regression

When you add a categorial variable as a predictor to your regression, R automatically creates dummy variables for categorical predictors. The first level alphabetically becomes the reference group:

Show R code
summary(lm_model)$coefficients |>
  kable(digits = 3)
Estimate Std. Error t value Pr(>|t|)
(Intercept) 5.776 0.242 23.895 0.000
communication_methodface_to_face 1.702 0.342 4.980 0.000
communication_methodvideo_call 1.227 0.342 3.590 0.001

Since ‘email’ comes first alphabetically, it is the reference group.

  • Intercept = mean of reference group (email, comes first alphabetically)
  • communication_methodface_to_face = difference between face_to_face and email
  • communication_methodvideo_call = difference between video_call and email

We can verify this manually:

Show R code
communication_study %>%
  group_by(communication_method) %>%
  summarise(mean = mean(satisfaction_score), .groups = 'drop') |>
  kable(digits = 2)
communication_method mean
email 5.78
face_to_face 7.48
video_call 7.00

Detour: When to Use lm() vs aov()

As shown above, both approaches give identical results. Still, they offer different perspectives:

Use aov() when: - You want traditional ANOVA output - Focus is on group comparisons - Need post-hoc tests such as TukeyHSD(), which take the aov-model as an input

Use lm() when: - You want to see specific contrasts - Planning to add continuous covariates later - Want regression-style interpretation - Building toward more complex models

If we add a continuous variable to an ANOVA, we get an ANCOVA:

Show R code
ancova_model <- lm(satisfaction_score ~ communication_method + task_completion_time,
                   data = communication_study)
summary(ancova_model)

Call:
lm(formula = satisfaction_score ~ communication_method + task_completion_time,
    data = communication_study)

Residuals:
     Min       1Q   Median       3Q      Max
-3.07895 -0.87806 -0.00768  0.78530  2.90678

Coefficients:
                                 Estimate Std. Error t value Pr(>|t|)
(Intercept)                      5.628267   0.807830   6.967 6.15e-10 ***
communication_methodface_to_face 1.737394   0.389664   4.459 2.48e-05 ***
communication_methodvideo_call   1.253306   0.369901   3.388  0.00106 **
task_completion_time             0.004472   0.023342   0.192  0.84853
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.331 on 86 degrees of freedom
Multiple R-squared:  0.2332,    Adjusted R-squared:  0.2064
F-statistic: 8.718 on 3 and 86 DF,  p-value: 4.108e-05

In the example, we now control for individual differences in task completion time. While trivial in the lm()-context, this would be much harder to do with the aov() approach!

Effect Size for ANOVA

\(\eta^2\) tells us what proportion of the total variance in the dependent variable is explained by the independent variable and, as explained above, serves as a standardized measure for comparing effect sizes:

Remember that:

  • Small effect: η² ≈ 0.01 (1% of variance)
  • Medium effect: η² ≈ 0.06 (6% of variance)
  • Large effect: η² ≈ 0.14 (14% of variance)

In our case:

Show R code
eta_squared <- effectsize::eta_squared(anova_result)
print(eta_squared)
# Effect Size for ANOVA

Parameter            | Eta2 |       95% CI
------------------------------------------
communication_method | 0.23 | [0.11, 1.00]

- One-sided CIs: upper bound fixed at [1.00].

\(\eta=\) 0.23 means communication method explains 23 % of the variance of satisfaction scores.

Post-Hoc Comparisons

The ANOVA tells us there’s a difference somewhere among the groups, but not which specific groups differ. This is why we need post-hoc tests: they provide these pairwise comparisons while controlling for multiple testing.

If we do multiple t-tests (e.g. one for each pairwise comparison), our Type I error rate will inflate. Post-hoc tests adjust critical values to maintain overall \(\alpha = 0.05\).

The most common post-hoc test has a nice name: Tukey’s Honestly Significant Difference (HSD). It takes the fitted ANOVA model as its input:

Show R code
tukey_result <- TukeyHSD(anova_result)
print(tukey_result)
  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = satisfaction_score ~ communication_method, data = communication_study)

$communication_method
                             diff        lwr       upr     p adj
face_to_face-email       1.702240  0.8871253 2.5173543 0.0000095
video_call-email         1.227135  0.4120202 2.0422492 0.0015714
video_call-face_to_face -0.475105 -1.2902195 0.3400094 0.3506328

This suggests that the following differences exist:

  • Face-to-face > Email: 1.70 points higher satisfaction (\(p < 0.001\))
  • Video call > Email: 1.23 points higher satisfaction (\(p = 0.002\))

But there are no significant differences between video calls and face-to-face (\(p = 0.35\))

Thus, both face-to-face and video call communication methods produce significantly higher satisfaction scores than email, but face-to-face and video call don’t differ significantly from each other.

Detour: Standardized differences across groups

Now we might want to standardize the differences between groups. Otherwise it is hard to judge whether they are also practically meaningful. Unfortunately, I am not aware of a function in any of the common packages that does this.

But we can do it manually. We first need the mean squared error from the ANOVA summary object:

Show R code
summary(anova_result)
                     Df Sum Sq Mean Sq F value   Pr(>F)
communication_method  2  46.29  23.146    13.2 9.81e-06 ***
Residuals            87 152.50   1.753
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

This is the 1.753! The square root is the pooled standard deviation:

Show R code
pooled_sd <- sqrt(1.753)

This is how we normalize the differences from our Tukey table above:

Show R code
tukey_differences <- c(
  face_to_face_vs_email = tukey_result$communication_method[1],
  video_call_vs_email = tukey_result$communication_method[2],
  video_call_vs_face_to_face = tukey_result$communication_method[3]
)
pairwise_cohens_d_values <- tukey_differences / pooled_sd

tibble(
  "Comparison"=names(pairwise_cohens_d_values),
  "Standardized difference" = pairwise_cohens_d_values
  ) |>
  kable()
Comparison Standardized difference
face_to_face_vs_email 1.2856708
video_call_vs_email 0.9268326
video_call_vs_face_to_face -0.3588382

So the two statistically significant differences are large effects (so also practically significant), whereas the insignificant difference would only have counted as small to medium effect.

Part 4: Factorial Designs

For this last part we consider the following research question:

How do feedback type and experience level interact to affect performance improvement?

We use the data stored as factorial_study:

Show R code
factorial_study %>%
  group_by(feedback_type, experience_level) %>%
  summarise(
    n = n(),
    mean = mean(performance_improvement),
    sd = sd(performance_improvement),
    .groups = 'drop'
  ) |>
  kable(digits = 2)
feedback_type experience_level n mean sd
critical expert 30 6.53 3.79
critical novice 30 5.53 4.10
positive expert 30 6.69 2.27
positive novice 30 6.71 2.66

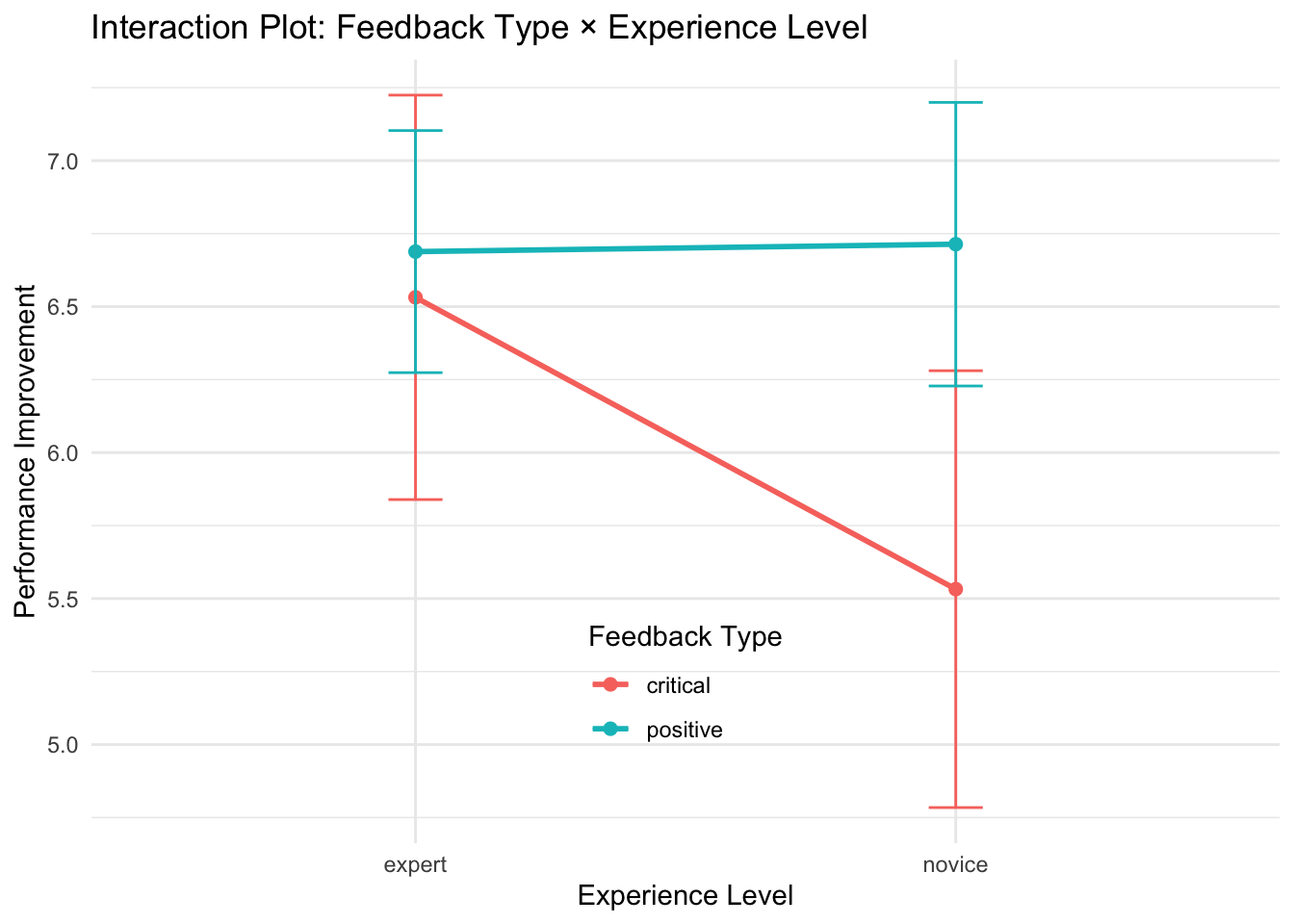

We then visualize the relationship using an interaction plot as discussed in the lecture:

Show R code
ggplot(
  data = factorial_study,
  mapping = aes(
    x = experience_level,
    y = performance_improvement,
    color = feedback_type,
    group = feedback_type)
  ) +
  stat_summary(fun = mean, geom = "point", size = 2) +
  stat_summary(fun = mean, geom = "line", linewidth = 1) +
  stat_summary(fun.data = mean_se, geom = "errorbar", width = 0.1) +
  guides(color = guide_legend(position = "inside")) +
  labs(
    title = "Interaction Plot: Feedback Type × Experience Level",
    x = "Experience Level",
    y = "Performance Improvement",
    color = "Feedback Type") +
  theme_minimal() +
  theme(legend.position.inside = c(0.5, 0.2))

This already gives us a good visual impression of the results, but we also want to analyze the results quantitatively.

Two-Way ANOVA - Checking assumptions

The factorial design allows us to consider interaction effects among factors. But to detect such interaction, we must use a two-way ANOVA, not the traditional one!

In a first step we need to again check the assumptions of the two-way ANOVA, which are in fact the same as in the previous case:

  1. Normality of residuals (not raw data)
  2. Homogeneity of variances (across all groups)

Regarding the first assumption, we again do the Shapiro-Wilk test on the residuals. To get the residuals we need to fit the model first. For this purpose, we use the same function aov() (or lm()) as previously, but add the additional factor to the formula:

Show R code
factorial_model <- aov(
  formula = performance_improvement ~ feedback_type * experience_level,
  data = factorial_study)
TipTwo-way ANOVA and linear regression

While the classical ANOVA was the same as simple linear regression with categorial variables, two-way ANOVA is the same as multiple regression with interaction effects:

Show R code
lm_factorial <- lm(performance_improvement ~ feedback_type * experience_level,
                   data = factorial_study)
anova(lm_factorial)
Analysis of Variance Table

Response: performance_improvement
                                Df  Sum Sq Mean Sq F value Pr(>F)
feedback_type                    1   13.43 13.4301  1.2373 0.2683
experience_level                 1    7.12  7.1155  0.6556 0.4198
feedback_type:experience_level   1    7.88  7.8766  0.7257 0.3960
Residuals                      116 1259.07 10.8541

is the same as:

Show R code
summary(factorial_model)
                                Df Sum Sq Mean Sq F value Pr(>F)
feedback_type                    1   13.4  13.430   1.237  0.268
experience_level                 1    7.1   7.115   0.656  0.420
feedback_type:experience_level   1    7.9   7.877   0.726  0.396
Residuals                      116 1259.1  10.854

We then extract the residuals using the function residuals() and pass them to the shapiro.test():

Show R code
shapiro.test(x = residuals(factorial_model))

    Shapiro-Wilk normality test

data:  residuals(factorial_model)
W = 0.98225, p-value = 0.1153

Since we test the same assumptions as above, \(p>0.05\) means that we cannot reject the \(H_0\) of normally distributed residuals.

Let us then turn to the second assumption: Homogeneity of variances across all groups. The syntax remains basically the same as above:

Show R code
car::leveneTest(
  performance_improvement ~ feedback_type * experience_level,
  data = factorial_study)
Levene's Test for Homogeneity of Variance (center = median)
       Df F value    Pr(>F)
group   3  6.2621 0.0005615 ***
      116
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Oh no! This time \(p<0.05\), so we need to reject \(H_0\) of equal variances, meaning that some cells (in the sense of factor-combinations) have more variation than others.

From this it becomes clear that the variability for the groups receiving critical feedback is much higher!

TipUnderstanding the Variance Pattern

We could have a look at which cells are affected like this:

Show R code
factorial_study %>%
  group_by(feedback_type, experience_level) %>%
  summarise(
    n = n(),
    variance = var(performance_improvement),
    sd = sd(performance_improvement),
    .groups = 'drop'
  ) %>%
  kable(digits = 3)
feedback_type experience_level n variance sd
critical expert 30 14.392 3.794
critical novice 30 16.791 4.098
positive expert 30 5.156 2.271
positive novice 30 7.078 2.660

This suggests that some people respond very well to criticism, others very poorly and that there are important differences in how people handle criticism:

  • Critical feedback cells: High variance (14-17) suggests people respond very differently to criticism
  • Positive feedback cells: Low variance (5-7) suggests people respond more consistently to praise

This example shows how testing assumptions is not only relevant for its own sake, but also hints an interesting results themselfes.

The higher variance in the critical feedback cells suggests that critical feedback is “riskier” - it might help some people a lot but hurt others, but that positive feedback is more predictable in its effects.

In effect this means that the results of the standard two-way ANOVA would be less reliable. But that mean our analysis must end? Fortunately not! There are versions of the two-way ANOVA that are robust to unequal variances!

To implement such robust version we use the function Anova() from the car package, which takes the resul of the aov() function above. But it is important to specify type = "III" as this tells R to use the version that takes into account unequal variances:

Show R code
factorial_model_robust <- car::Anova(factorial_model, type = "III")

Two-Way ANOVA: Interpretation

Let us now inspect the results of the two-way ANOVA. We will pay particular attention to the following aspects:

  1. Main effect of feedback_type: Overall difference between positive vs critical
  2. Main effect of experience_level: Overall difference between novice vs expert
  3. Interaction: Does the effect of feedback depend on experience level?
Show R code
factorial_model_robust
Anova Table (Type III tests)

Response: performance_improvement
                                Sum Sq  Df  F value Pr(>F)
(Intercept)                    1279.89   1 117.9186 <2e-16 ***
feedback_type                     0.37   1   0.0339 0.8542
experience_level                 14.98   1   1.3803 0.2424
feedback_type:experience_level    7.88   1   0.7257 0.3960
Residuals                      1259.07 116
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

With two factors, R creates dummy variables for each factor plus their interaction:

Show R code
coefficients(lm_factorial)
                                 (Intercept)
                                   6.5317033
                       feedback_typepositive
                                   0.1566833
                      experience_levelnovice
                                  -0.9994123
feedback_typepositive:experience_levelnovice
                                   1.0247960

Their interpretation is as follows:

  • Intercept = mean of reference group (critical feedback + expert)
  • feedback_typepositive = main effect of positive vs critical for experts only
  • experience_levelnovice = main effect of novice vs expert for critical feedback only
  • interaction = additional effect of being novice AND receiving positive feedback

From this output we see that all three effects (both main effects and the interaction) are non-significant, suggesting that:

  • Neither feedback type nor experience level significantly affects performance improvement
  • The combination of these factors doesn’t create any synergistic effects
  • The observed differences in your sample means are likely due to random variation rather than true population differences

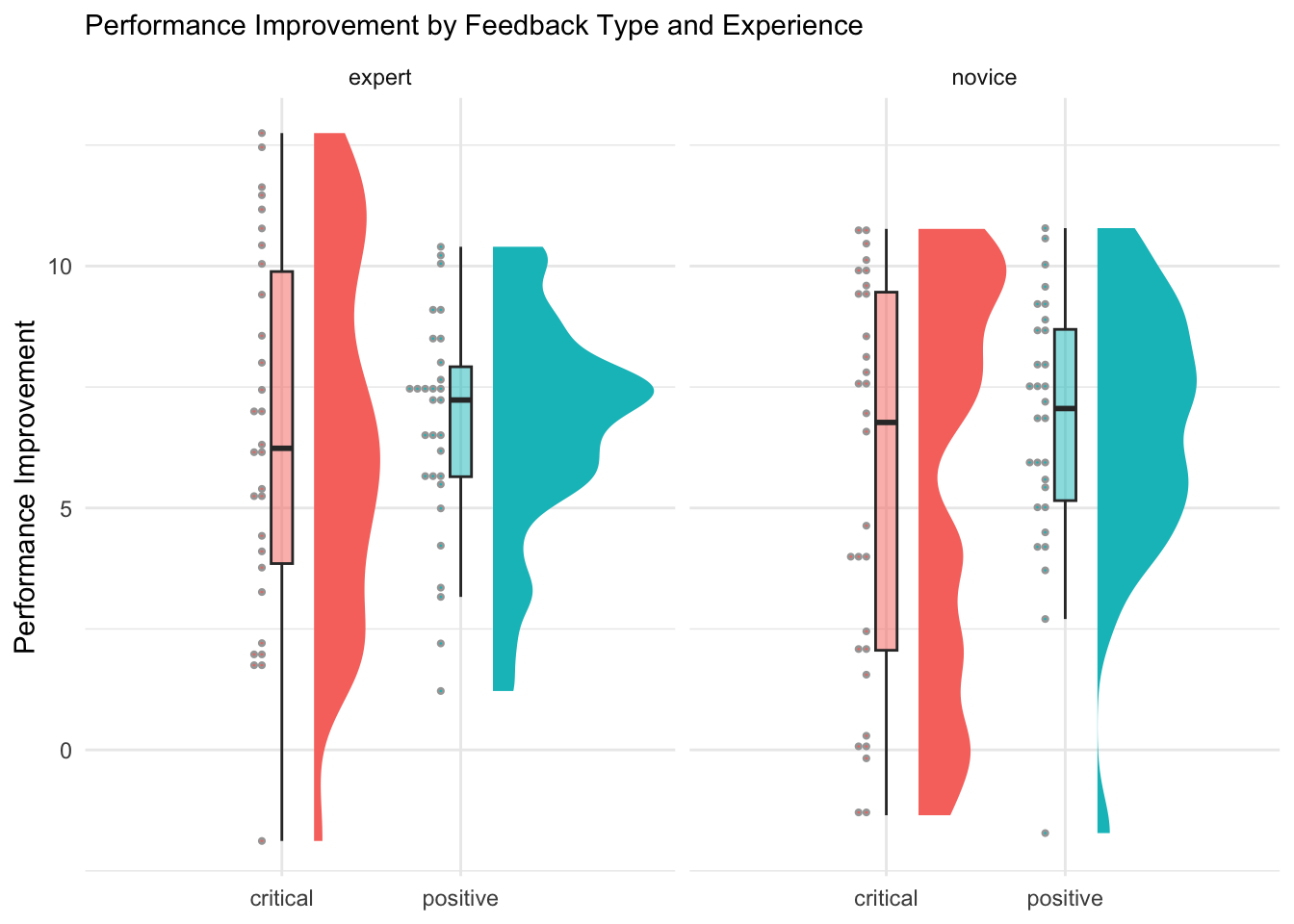

In fact, this is also what a visual inspection would suggest:

Show R code
ggplot(
  data = factorial_study,
  mapping = aes(
    x = feedback_type,
    y = performance_improvement,
    fill = feedback_type)
  ) +
    stat_halfeye(
    adjust = 0.5,
    justification = -0.2,
    .width = 0,
    point_colour = NA
  ) +
  geom_boxplot(
    width = 0.12,
    outlier.color = NA,
    alpha = 0.5
  ) +
  stat_dots(
    side = "left",
    justification = 1.1,
    binwidth = 0.15
  ) +
  facet_wrap(~ experience_level) +
  labs(
    title = "Performance Improvement by Feedback Type and Experience",
    x = "Feedback Type",
    y = "Performance Improvement") +
  theme_minimal() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 11),
    axis.title.x = element_blank()
  )

Part 5: Power Analysis and Sample Size Planning

Statistical power is the probability of detecting an effect when it truly exists. You know from the lecture that the decision about sample sizes determines in part statistical power. Power analysis helps us plan adequate sample sizes and evaluate our study’s sensitivity.

General aspects of power analysis

Remember the components of power analysis:

  • Power: Probability of detecting effect (usually we want ≥ 0.8)
  • Effect size: How big a difference we want to detect
  • Sample size: Number of participants needed
  • Alpha level: Type I error rate (usually 0.05)

We can use power analysis in two different ways:

  1. Post-hoc (observed): What was our power given the sample size we had?
  2. A priori (prospective): How many participants do we need to detect an effect?

Regarding the first, we may ask: what was our power to detect the effect we found in the leadership study?

Show R code
observed_power <- pwr.t.test(n = 30, d = as.numeric(cohens_d$Cohens_d), sig.level = 0.05)
print(observed_power)

     Two-sample t test power calculation

              n = 30
              d = 1.015848
      sig.level = 0.05
          power = 0.9718339
    alternative = two.sided

NOTE: n is number in *each* group

Lets turn to the a priori power analysis, i.e. what you should do BEFORE collecting data to determine how many participants you need.

In a first step, you always need to specify your research parameters:

  • What effect size do you want to detect?
  • What power level do you want? (typically 0.8 or 0.9)
  • What alpha level will you use? (typically 0.05)

The remaining steps depend on the analysis method we wish to employ:

t-Tests

Assume we want to plan a new leadership training study, similar to the one above. We want to detect a medium effect (\(d = 0.5\)) with 80% power.

Show R code
sample_size_medium <- pwr.t.test(d = 0.5, power = 0.8, sig.level = 0.05)
print(sample_size_medium)

     Two-sample t test power calculation

              n = 63.76561
              d = 0.5
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

If instead we would like to identify a small effect (with \(d=0.5\)). Everything else remains the same:

Show R code
sample_size_small <- pwr.t.test(d = 0.2, power = 0.8, sig.level = 0.05)
print(sample_size_small)

     Two-sample t test power calculation

              n = 393.4057
              d = 0.2
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

And what would happen if we wanted higher power (90%) for a medium effect?

Show R code
sample_size_high_power <- pwr.t.test(d = 0.5, power = 0.9, sig.level = 0.05)
print(sample_size_high_power)

     Two-sample t test power calculation

              n = 85.03128
              d = 0.5
      sig.level = 0.05
          power = 0.9
    alternative = two.sided

NOTE: n is number in *each* group

We see that small design choices can have huge effects:

Show R code
power_results <- tibble(
  Scenario = c("Medium effect, 80% power", "Small effect, 80% power", "Medium effect, 90% power"),
  Effect_Size = c(0.5, 0.2, 0.5),
  Power = c(0.8, 0.8, 0.9),
  Sample_per_Group = c(
    ceiling(sample_size_medium$n),
    ceiling(sample_size_small$n),
    ceiling(sample_size_high_power$n)
  ),
  Total_Sample = c(
    ceiling(sample_size_medium$n) * 2,
    ceiling(sample_size_small$n) * 2,
    ceiling(sample_size_high_power$n) * 2
  )
)

kable(power_results)
Scenario Effect_Size Power Sample_per_Group Total_Sample
Medium effect, 80% power 0.5 0.8 64 128
Small effect, 80% power 0.2 0.8 394 788
Medium effect, 90% power 0.5 0.9 86 172

ANOVA

Assume we are planning a communication study with 3 groups and we want to detect a medium effect (f = 0.25) with 80% power. Note that what was Cohen’s d for the t-test case, has now become Cohens f for the ANOVA case:

Show R code
sample_size_anova <- pwr.anova.test(
  k = 3, f = 0.25, sig.level = 0.05, power = 0.8)
print(sample_size_anova)

     Balanced one-way analysis of variance power calculation

              k = 3
              n = 52.3966
              f = 0.25
      sig.level = 0.05
          power = 0.8

NOTE: n is number in each group

Aside from that it works the same way as above!

Summary and Key Takeaways

Key take-aways

  1. Data exploration is crucial before statistical testing
  2. Assumption checking ensures valid results and guides method selection
  3. Effect sizes provide practical significance context beyond p-values
  4. Visualization aids interpretation and communication of results
  5. ANOVA is just regression with categorical predictors
  6. Both aov() and lm() give identical results but offer different perspectives
  7. Post-hoc tests control for multiple comparisons when making pairwise comparisons
  8. Factorial designs allow detection of interactions between factors

Key decisions to be made

  • Assumptions violated: Choose appropriate alternatives (Welch’s tests, transformations, non-parametric)
  • Multiple groups: ANOVA preferred over multiple t-tests
  • Factorial designs: Allow testing of interactions between factors but requires two-way ANOVA
  • Effect size interpretation: Always consider practical alongside statistical significance
  • Post-hoc testing: Required when ANOVA is significant to identify which groups differ

References

Holtz, Y. (2025) “The boxplot and its pitfalls,” From Data to Viz, available at https://www.data-to-viz.com/caveat/boxplot.html.

Footnotes

  1. I use the function kable() for nicer output in the html file. When you replicate the code in R-Studio its best to skip the part |> kable().↩︎

  2. At this point we assume that the groups were similar before the training. In practice, it would be good to first make sure the performances of the groups before the training were similar.↩︎
